Allevi 2

The Original Desktop 3D Bioprinter

Still the One

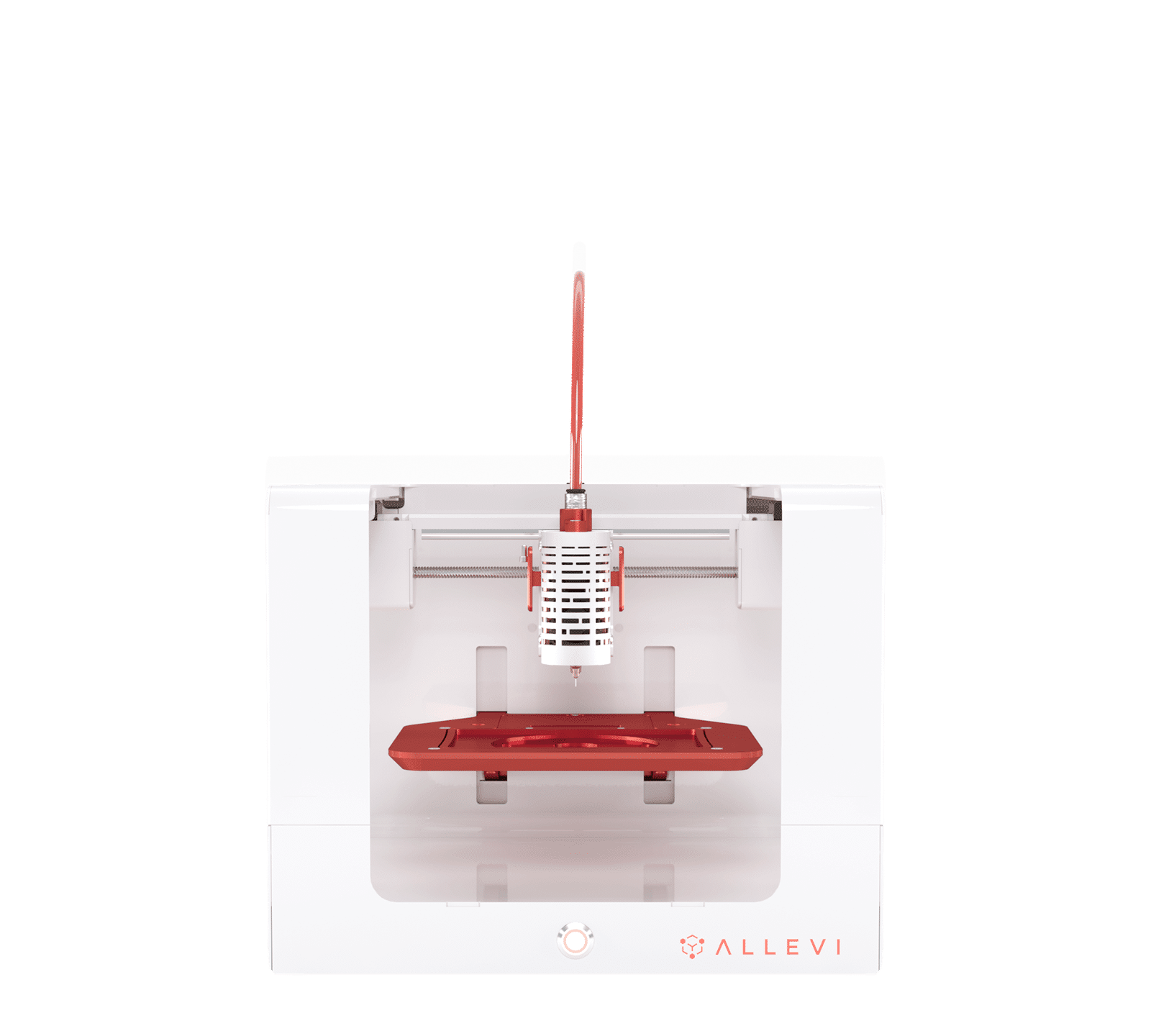

The Allevi 2 is the world’s first desktop 3D bioprinter.

It is a beautifully designed, precision-manufactured 3D bioprinter that prints cells and bioinks.

allevi 2 bioprinter angle

Pneumatic Extrusion

The Allevi 2 is built around a compressed air pneumatic system, making it very easy to achieve clean starts and stops in printing. Pressure ranges between 1 and 120 PSI accommodate a wide range material viscosities.

pneumatic extrusion
temperature control

RT – 160˚ C

Temperature Control

With temperature control from room temperature to 160° C, the Allevi 2 bioprinter is able to print a wide range of bioinks and cells including gelatin methacrylate, PCL, PLGA, Hyperelastic Bone, fibroblasts, and mesenchymal stem cells (hMSC)– just to name a few.

Photocuring

With the Allevi 2 bioprinter you can choose to cure biomaterials in either visible or ultraviolet light, using LAP or another photoinitiator. We will build the printer to your specification when you buy – 405nm crosslinking LEDs are standard, with 365nm as an alternate option.

photocuring

UV or Blue Light

Allevi 2 User Manual
Allevi 2 Flyer

TECHNICAL SPECIFICATIONS

  • Extruders 2
  • Photocuring LED – 405nm standard, 365nm option
  • Printing Technology Fused Deposition Manufacturing (FDM)
  • Compatible Syringes 10 mL plastic, 10 mL metal
  • Min. Temp Ambient
  • Max. Temp 160˚ C, 70˚ C 1
  • Min. Pressure 3 PSI
  • Max. Pressure 120 PSI
  • Pressure Variance ±1 PSI
  • Construction Aluminum Frame
  • X, Y Precision 5 μm
  • Z Precision 1 μm
  • Build Volume (W × H × D) 3.5 × 2.4 × 5.1 in (42.8 in³)
  • Build Volume Metric (W × H × D) 9 × 6 × 13 cm (702 cm³)
  • Supported Build Plates Slide, Petri Dish, Well Plate
  • Dimensions (W × H × D) 12.3 × 12.2 × 12.1 in
  • Dimensions Metric (W × H × D) 31.3 × 31.1 × 30.8 cm
  • Weight 19 lbs (8.6 kg)
  • Power Requirements AC 110V – 220V

1 160˚ C on extruder 1 only.
